12ft x 8ft Steel Drying Room

12ft x 8ft Drying Room
12ft x 8ft Drying Room
12ft x 8ft Drying Room

General

• Steel anti-vandal construction • Steel external door with deadlocking

• 1 Window with secure steel shutters • Stands on corner posts, no jacklegs required

• Electrically tested • Stackable (with other same sized units)

Internal

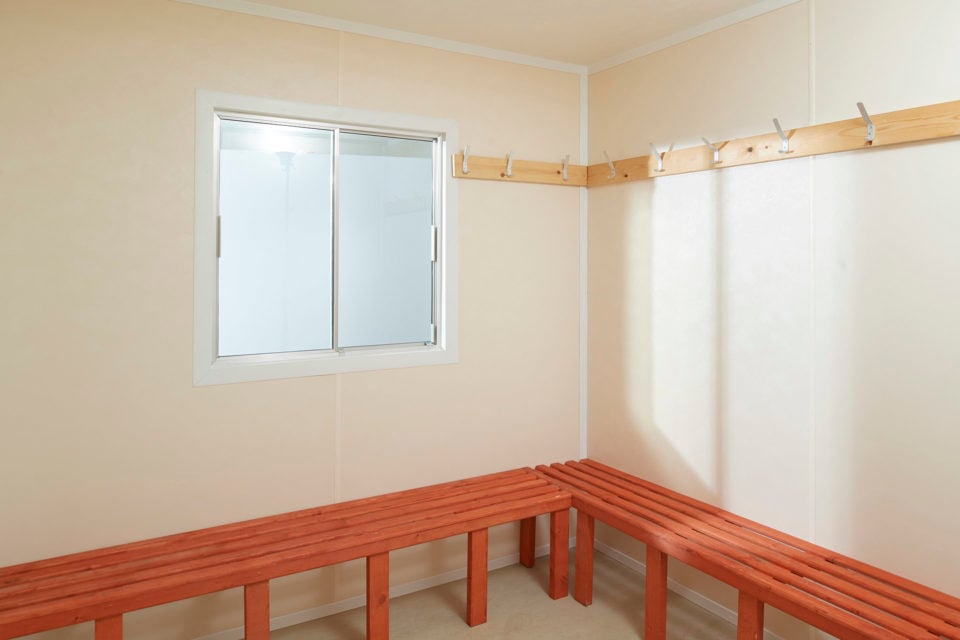

• Drying room area with fitted benches & high level fan heater • Sealed vinyl floor

• Wipe clean wall boards • Insulated walls & ceiling

• Sliding single glazed windows • Fitted consumer unit

• Power points • Fluorescent strip lighting

• Electric convector heater

Construction Type: Steel Anti Vandal Cabins
20ft one trip : Drying Room
External Length: 12ft
Size: 12ft x 8ft
External Height: 2.66m
External Width: 8ft
Body Thickness: 1.6mm
Cabin Finish: Steel Anti-Vandal
Colour: Any Single B.S. or RAL Colour
Floor Construction: 15.5mm WBP Plywood
Lockbox: N/A
Crossmembers: 100mm x 50mm heavy gauge joists at 406mm Centres
Floor Finish: 2mm Vinyl with white PVCu Interior Trims
Internal Lining: 4mm pre finished plywood wallboard
Internal Framework: 70mm x 34mm timber at 406mm centres
Insulation: 80mm Fibreglass
Internal Ceiling: 4mm white prefinished board
Doors: Double Skin Steel Door w/ zinc plated piano hinge
Window Type: Single-glazed sliding with steel shutters
Window Size: 915mm x 915mm
Body Material: Corrugated Steel
