16ft x 8ft Steel Anti-Vandal Canteen

16ft x 8ft Steel Anti-Vandal Canteen
16ft x 8ft Steel Anti-Vandal Canteen
16x8 Canteen

General

 • Open plan Canteen (mess room) • Steel anti-vandal construction

• 1 Steel external door with 2 deadlocks • 2 Windows with secure steel shutters

• Stands on corner posts, no jacklegs req’d • Electrically tested

• Stackable (with other same size units)

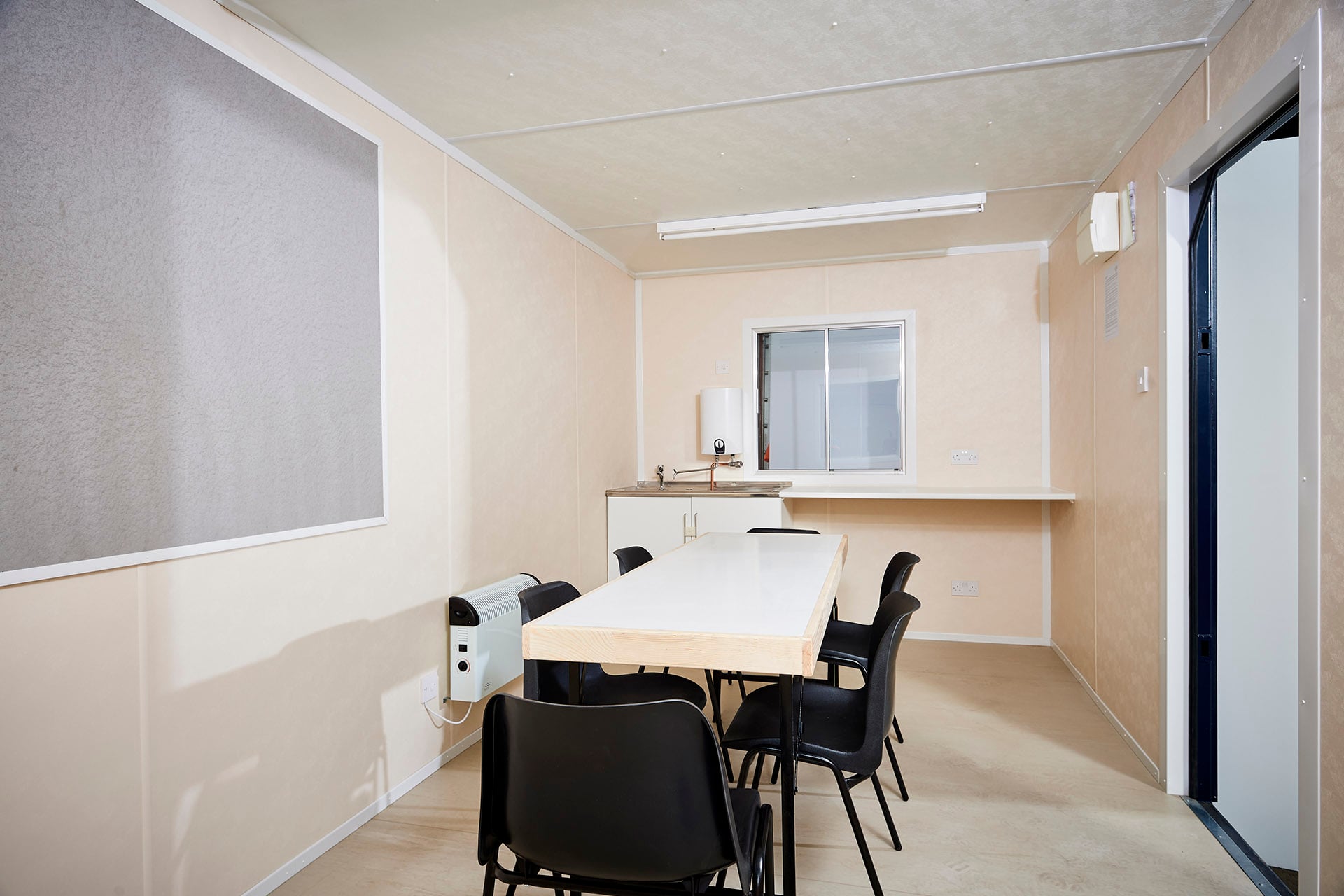

Internal

• Sealed vinyl floor • Wipe clean wall boards

• Insulated walls & ceiling • Sliding single glazed windows

• Sink, taps, water heater, cabinet & worktop • Power points

• Fluorescent strip lighting • Electric convector heater

Construction Type: Steel Anti Vandal Cabins
20ft one trip : Canteen
Size: 16ft x 8ft
External Height: 2.66m
Body Thickness: 1.6mm
Cabin Finish: Steel Anti-Vandal
Colour: Any Single B.S. or RAL Colour
Floor Construction: 15.5mm WBP Plywood
Lockbox: N/A
Crossmembers: 100mm x 50mm heavy gauge joists at 406mm Centres
Floor Finish: 2mm Vinyl with white PVCu Interior Trims
Internal Lining: 4mm pre finished plywood wallboard
Internal Framework: 70mm x 34mm timber at 406mm centres
Insulation: 80mm Fibreglass
Internal Ceiling: 4mm white prefinished board
Doors: Double Skin Steel Door w/ zinc plated piano hinge
Window Type: Single-glazed sliding with steel shutters
Window Size: 915mm x 915mm
Body Material: Corrugated Steel
