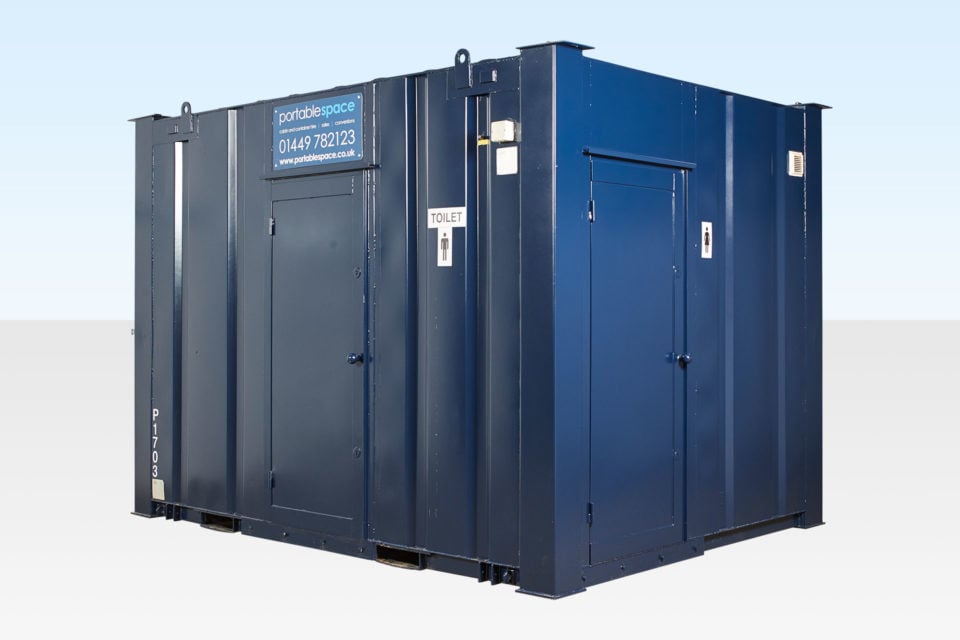

2+1 Steel Toilet 12ft x 9ft

2+1 Steel Toilet
2+1 Steel Toilet 12' x 9'
12ft x 9ft Steel Toilet (2+1)
2+1 Steel Toilet
2+1 Steel Toilet
2+1 Steel Toilet
2+1 Steel Toilet



Information

General

• 2 + 1 Toilet • Steel anti-vandal construction

• 2 Steel external doors with deadlocks • No windows (extractors only)

• Stands on corner posts, no jacklegs req’d • Fitted extractor fans, no windows req’d

• Electrically tested



Internal

• Sealed vinyl floor • Wipe clean wall boards

• Insulated walls & ceiling • WC’s, basins, urinals, water heaters

• Fluorescent strip lighting • Tubular Heaters

• Extractor fans



Optional Extras

• Percussion Taps • 500 gallon Steel Waste Tank

• Jacklegs • Steps for use with Jacklegs



Construction Type: Toilets, Tanks and Showers
Size: 12ft x 9ft
20ft one trip : Toilet
Unladen Weight: 2350kg
Max Laden Weight: 3575kg
Body Thickness: 1.6mm
Cabin Finish: Steel Anti-Vandal
Colour: Any Single B.S. or RAL Colour
Floor Construction: 15.5mm WBP Plywood
Lockbox: N/A
Crossmembers: 100mm x 50mm heavy gauge joists at 406mm Centres
Floor Finish: 2mm Vinyl with white PVCu Interior Trims
Internal Lining: 4mm pre finished plywood wallboard
Internal Framework: 70mm x 34mm timber at 406mm centres
Insulation: 80mm Fibreglass
Internal Ceiling: 4mm white prefinished board
Doors: Double Skin Steel Door w/ zinc plated piano hinge
Body Material: Corrugated Steel
Toilet Type: Steel Toilet
