3.3m x 2.3m Flatpacked Office

3.3m x 2.3m Flatpacked Office
3m Flatpacked Office

This office arrives flat packed, is man portable and is ideal for erecting in previously inaccessible locations. It’s simple assembly (with a socket set) takes about 45 minutes.

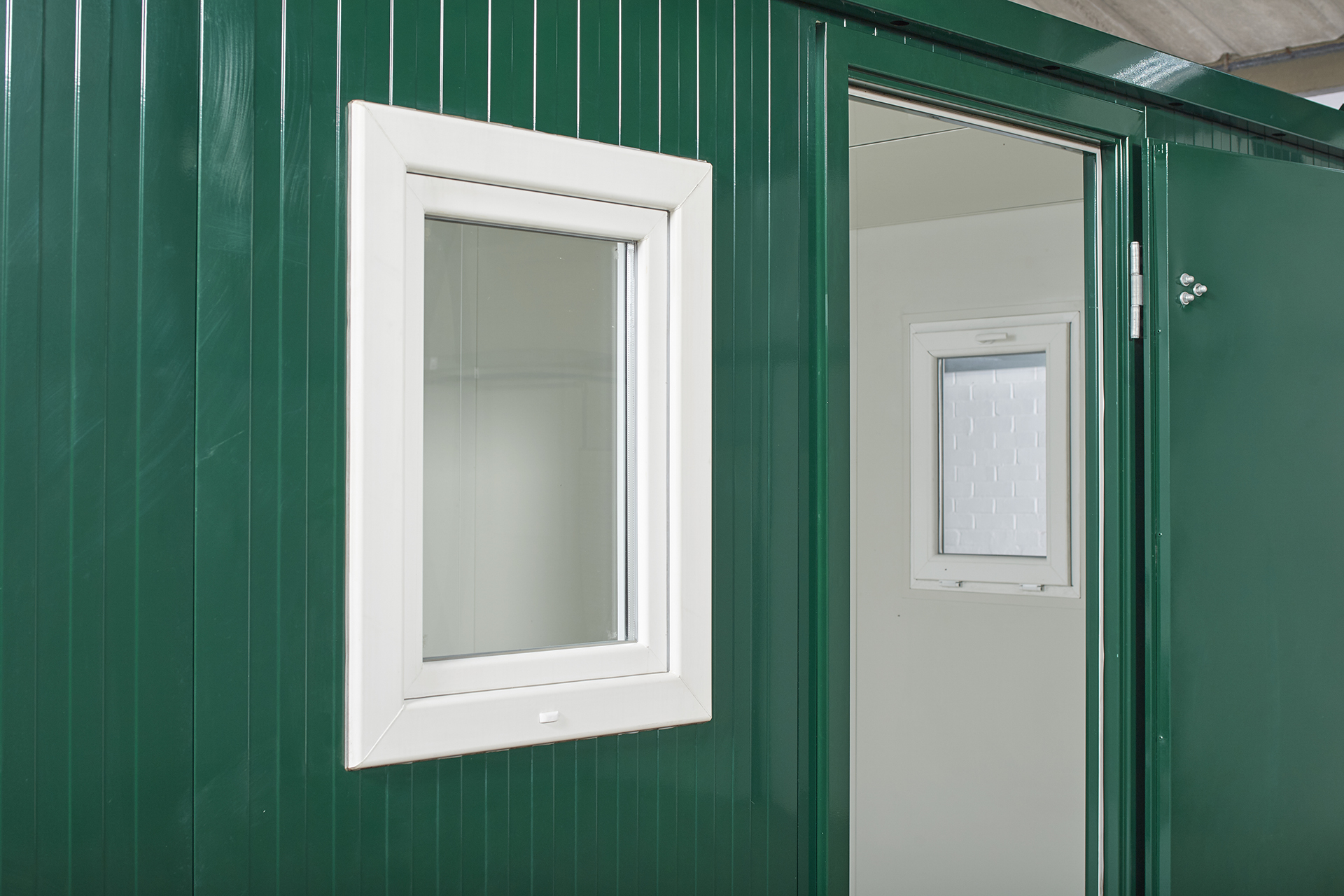

Manufactured from fully galvanised steel (no rusting),this flat packed office has attractive smooth paneling, finished in a powder coated moss green (Ral 6005) on the outside and an off white (Ral 9002) powder coat on the inside. The unit has a guttered roof and features a double glazed u-PVC window fitted as standard. The interior of the insulated office is pleasantly light and airy with a durable and smart wall finish - suitable for surface mounted electrics.

Once assembled the unit can be moved by crane / forklift or demounted back into it's neat flat-pack form for storage purposes. These units can be linked side to side or end to end to provide additional space at any time after initial assembly.

This flat packed office comes in 3 sizes:

• (L)2.255M x (W)2.403M x (H)2.345M (7’ x 7’6” approx)

• (L)3.299M x (W)2.304M x (H)2.345M (10’ x 7’6” approx)

• (L)4.364M x (W)2.304M x (H)2.345M (12’ x 7’6” approx)



Electrical Equipment No electrical wiring and equipment fitted. The unit is designed to have a surface mounted electrical installation.

Additional Information

Doors and windows can be fitted anywhere in the unit. This flat packed accommodation is not designed to comply with Building Regulations approval.

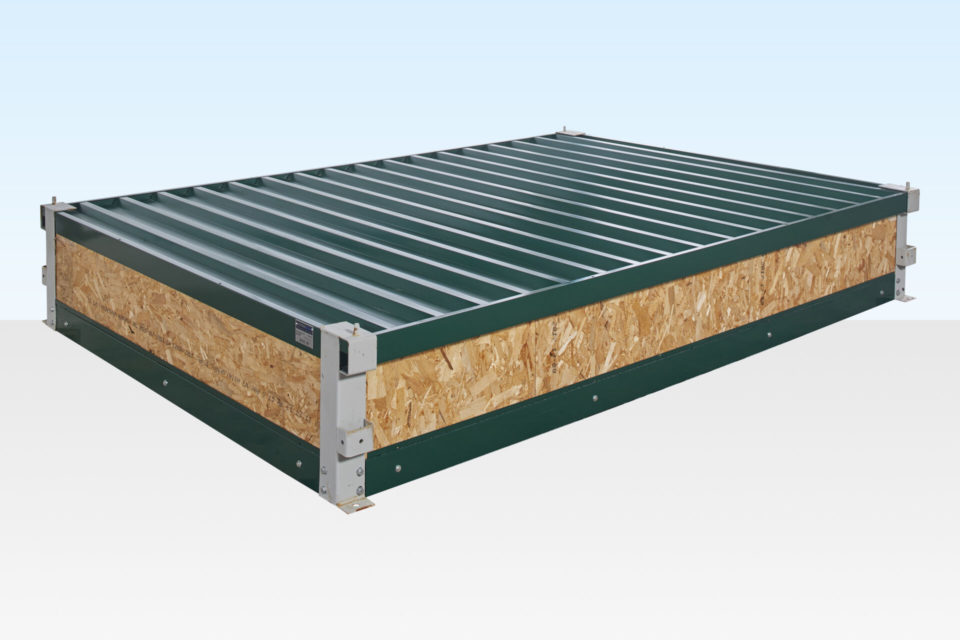

Flatpacked Height: 300mm
Construction Type: Flatpack Cabins and Containers
20ft one trip : Flatpack Office
External Length: 3320mm
Size: 3.3m x 2.3m
External Height: 2345mm
External Width: 2403mm
Body Thickness: 0.73mm
Cabin Finish: Powder Coated
Colour: Green RAL6005
Weight: 935kg
Lockbox: N/A
Body Material: Galvanised Steel
